5 Megapixel Day & Night Outdoor Dome Network Camera
Nereden Alınır


The D-Link DCS-6517 5 Megapixel Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a 5 megapixel progressive scan CMOS sensor to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

Built for the Outdoors

Specially built for outdoor use, the DCS-6517L has an IP66 weatherproof housing that protects it from dirt and rain. The durable housing of the DCS-6517 has also been designed to meet IK10 vandal proof specifications, meaning that it can be deployed into areas that require the peace of mind that the DCS-6517 can provide. Combined with its power over Ethernet (PoE) cability,the DCS-6517 truly is a versatile solution that be used in a wide range of applications.

Continuous Monitoring

In low-light situations, the IR cut filter automatically slides out of the way to use all available light. The DCS-6517 also has built-in IR LED illuminators with a 20 meter range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day. To maximize bandwidth efficiency and improve image quality, the DCS-6517 provides real-time video compression using the H.264, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory.

Flexible Connectivity

The DCS-6517 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.

Robust Management Software

The DCS-6517 5 Megapixel Day & Night Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Genel Özellikler

Fiziksel Özellikler
The exceptional quality of the video
• 1/3,2-inch 5 megapiksel CMOS-sensor with progressive scan
• motorized varifocal lens with focal lengths from 3 to 10,5 mm
• Full HD resolution of 1920 x 1080 and up to 5 mega pixels with a resolution of 2560 x 1920
• P-Iris technology delivers superior image quality
• WDR technology provides improved image quality
• codec support H.264, MPEG-4, MJPEG for streaming and recording
External installation
• Built-in IR LEDs (20 m) for video surveillance in the dark
• Built-in heater and fan provide camera operation at temperatures from -40 °  to 60 °  C
• A number of options for mounting the camera
• Weatherproof (standard IP-66) and anti-vandal (standard IK-10) body
• Protective cover
• Card slot MicroSD / SDHC
• Port 10/100 Fast Ethernet with support for PoE, providing easy integration into network
• Digital input and output for connection to external sensors and devices
• The audio input and audio output to connect a microphone and speaker for two-way audio transmission
Hardware profile camera
• 1/3,2-inch 5 megapiksel CMOS-sensor with progressive scan
• The distance infrared illumination: 20 m
• Minimum illumination: 0.3 Lux / F1.4 (color), 0.01 lux / F1.4 (B & W), 0 lux (black-and-white mode with infrared illumination)
• Built-in ICR-filter
• 4x digital zoom
• motorized varifocal lens with focal lengths from 3 to 9 mm
• The aperture of F1.4
• Viewing angle (16:9):
  + 85.03 °  ~ 25.48 °  (horizontal)
  + 65.47°  ~ 19.09 °  (vertical)
The camera body
• Weatherproof (standard IP-66) and anti-vandal (standard IK-10) body
• Protective cover
• Sunshield included
Image characteristics
• Setting the image size and quality, frame rate and bit rate
• The timings and paste text
• Customizable windows for motion detection
• Customizable zone private masks
• Set the shutter speed, brightness, color saturation, contrast, sharpness, zoom, focus and aperture
Video Compression
• Compression formats H.264/MPEG-4/MJPEG
• H.264/MPEG-4 multicast broadcasting
• JPEG for still images
Video Resolution
• 4:3 (up to 15 frames / s)
  + 2560 x 1920
• 4:3 (up to 30 frames / s)
  + 2048 x 1536
  + 1600 x 1200
  + 1024 x 768
  + 800 x 600
  + 640 x 480
  + 480 x 360
  + 320 x 240
• 16:9 (30 frames / s)
  + 1920 x 1080
  + 1280 x 720
  + 800 x 450
  + 640 x 360
  + 480 x 270
  + 320 x 176
Audio Support
• G.726
• G.711
Interfaces to external devices
• Port 10/100 BASE-TX Fast Ethernet with PoE
• 1 DI / 1 DO
• The connector 12 VDC, 100 mA
• MicroSD / SDHC
• Audio In / Audio Out
• Reset Button
• Video Output (BNC)
Network Protocols
• IPv6
• IPv4
• TCP / IP
• DHCP-Client
• NTP-Client (D-Link)
• DNS-client
• DDNS-Client (D-Link)
• SMTP-client
• FTP-client
• Samba-client
• UPnP port forwarding
• Filtering IP-addresses
• QoS
• CoS
• Multicast
• Security administrator account and user groups
• Password authentication
• Encryption HTTP and RTSP
System requirements for Web-based interface
Web-browser: Internet Explorer version 7 or higher, Firefox version 1.5 or above, another Java-enabled browser
Event Management
• Motion detection
• Event notification and download stop-kadrov/videoklipov via email or FTP
• Support for multiple SMTP servers, and FTP
• Multiple event notifications
• Several ways to create backups
Remote management
• Take snapshot/video and save to a local hard drive or NAS via Web-browser
• Interface settings, available through the Web-browser
Remote management
• Create stop-kadrov/videoklipov and save to a local hard drive or NAS via Web-browser
• Interface settings, available through the Web-browser
OS Support
Windows 8, 7, Vista, 2000 or XP
System Requirements D-ViewCam ™
• Operating System: Microsoft Windows 8/7/Vista/XP
• Web-browser: Internet Explorer 7 or above
• Protocol: Standard TCP / IP
The software features D-ViewCam ™
• Remote management / control of up to 32 cameras
• Viewing images on a single screen: up to 32 cameras
• Recording Options for triggering a sensor or manually
• Supports all management functions available through the Web-based interface

Fiziksel Özellikler

1.25 kg (with protective cap)
Power supply unit
• Input: 100-240 VAC, 50/60 Hz
• Output: 12 V DC, 1.5 A
Power over Ethernet cable (technology 802.3af PoE)
Power consumption
11.6 W ± 5% (PoE, Heater On)
• Operating: -40 °  to 60 °  C
• Storage: -20 °  to 70 °  C
• Operating: 20% to 80% (non-condensing)
• Storage: 5% to 95% (non-condensing)
• CE
• C-Tick


Sipariş Bilgisi

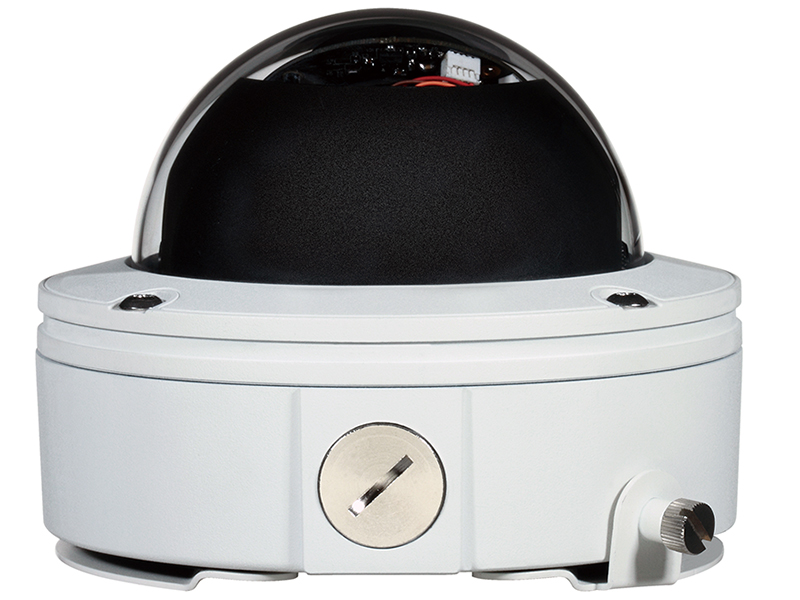

Back view

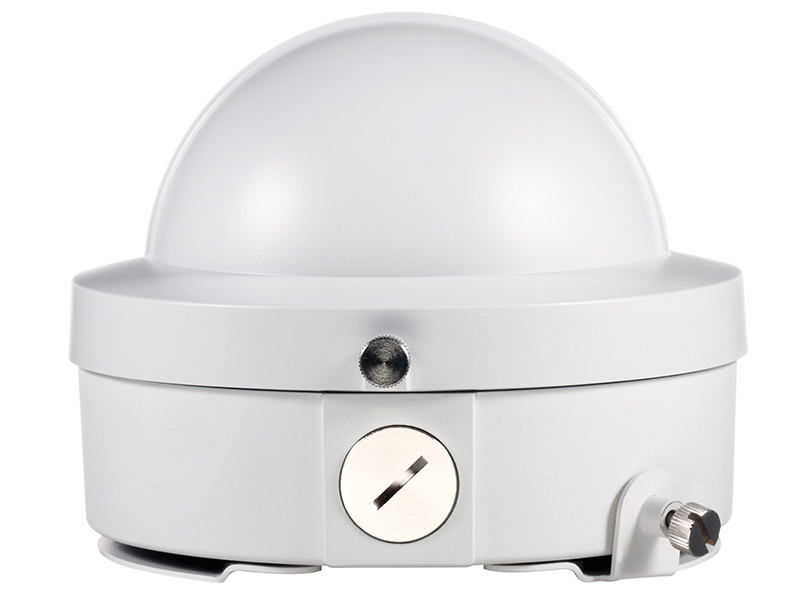

Back view

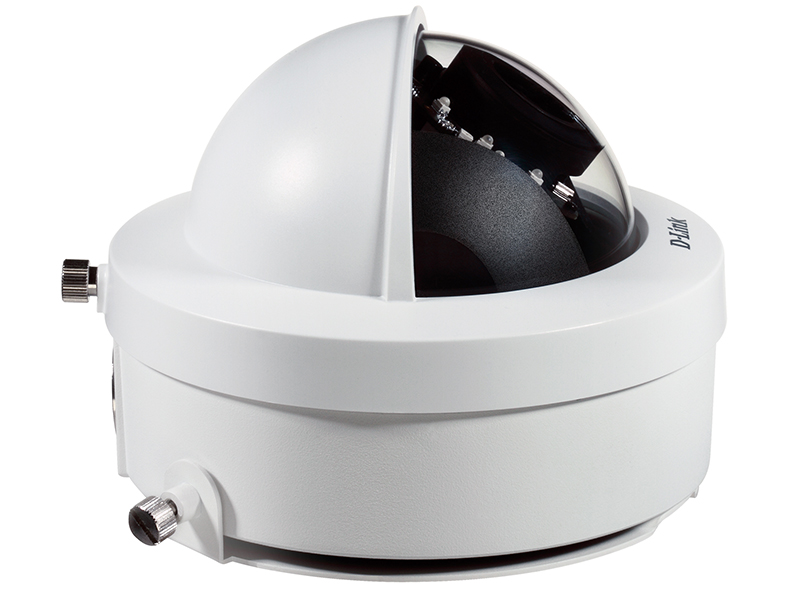

View from the right

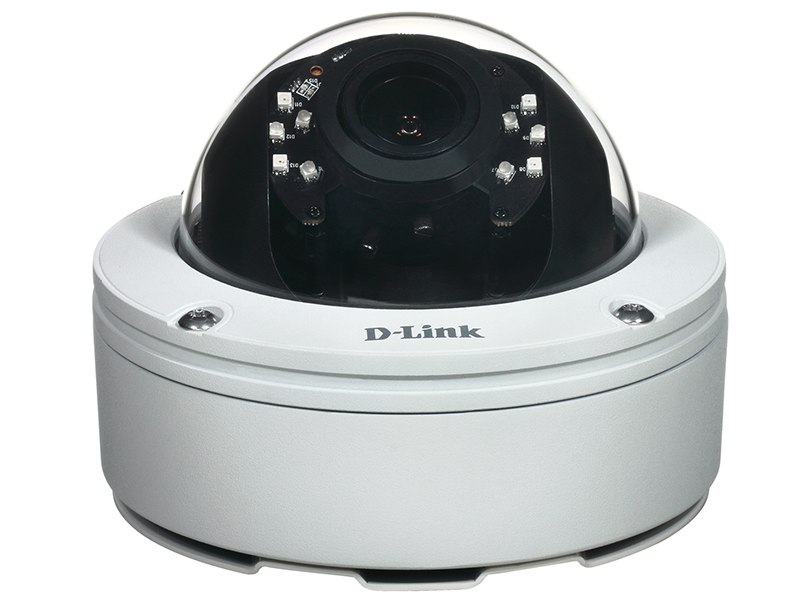

Front view
