DWL-8600APEOL EOS
Dual-Band 802.11n Unified Wireless Access Point
Description
The DWL-6700AP Dual-Band 802.11n Unified Wireless Access Point is an access point specially designed for short to medium distance services, providing all possible WDS/backhauling networking applications on its 5 GHz band. Featuring the 5 Ghz 8 dBi MIMO directional patch antenna, the DWL-6700AP brings you the most reliable medium distance connectivity.
Centrally Manage your Wireless Network
When working in conjunction with D-Link Unified Switch/Controllers, the DWL-6700AP can be centrally managed. This allows a large number of APs to be deployed and managed easily and efficiently. Once the APs are discovered by the switch/controller, the administrator can push specific configuration sets onto them rather than having to do so one by one. In addition, RF resource management and security are also managed centrally, thus allowing the administrator to preemptively identify potential deficiencies and weaknesses in the network.
Wi-Fi Strength LEDs and Remote Reset Button
The 5 GHz signal strength LEDs provide simple indicators to display the signal strength of the WDS link, so administrators do not need to worry about aiming the direction of the signal at the opposite point, even if the two APs are one to two kilometers away from each other. Aside from the reset button (first reset button) on the DWL-6700AP, the PoE injector also supports a second reset button for remote setup.
Quality of Service for Increased Connectivity
The DWL-6700AP supports 802.1p Quality of Service (QoS) for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP. The DWL-6700AP is WMM-certified, so in the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic. Furthermore, when a number of DWL-6700AP units are in close proximity to each other, an access point will refuse new association requests once its resources are fully utilized, allowing the association request to be picked up by a neighboring unit. This feature ensures that no single AP is overburdened while others nearby sit idle.
General features
Interfaces
• 802.11a/b/g/n
• Two 10/100 LAN ports (PoE in from either LAN1 or LAN2)
• Factory reset button
Antenna
• 5 Ghz: Two integrated 8 dBi directional antennas
• 2.4 GHz: Two integrated 3 dBi omnidirectional antennas
Power Method
• Powered by PoE only (from either LAN1 or LAN2, non-standard PoE 24 V / 1 A)
Operating Channel
• 2.4 / 5 GHz
• 11 channels for United States
• 13 channels for Europe
• 13 channels for Japan
Wireless speed
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbit/s
• IEEE 802.11b: 1, 2, 5.5 and 11 Mbit/s
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbit/s
• IEEE 802.11n: 6.5 ~ 300 Mbit/s (MCS0 ~ MCS15)*
Transmitter Output Power
• IEEE 802.11a:
20 dBm at 6~18 Mbit/s
19 dBm at 24 Mbit/s
18 dBm at 36 Mbit/s
17 dBm at 48 Mbit/s
15 dBm at 54 Mbit/s
• IEEE 802.11b:
20 dBm at 1 Mbit/s
19 dBm at 2 Mbit/s
17 dBm at 5.5 and 11 Mbit/s
• IEEE 802.11g:
20 dBm at 6~18 Mbit/s
19 dBm at 24 Mbit/s
18 dBm at 36 Mbit/s
17 dBm at 48 Mbit/s
15 dBm at 54 Mbit/s
• IEEE 802.11n:
2.4 GHZ/HT-20:
20 dBm at MCS0-MCS3, MCS8-MCS11
19 dBm at MCS4, MCS12
18 dBm at MCS5, MCS13
17 dBm at MCS6, MCS14
16 dBm at MCS7, MCS15
2.4 GHZ/HT-40:
19 dBm at MCS0-MCS3, MCS8-MCS11
17 dBm at MCS4, MCS12
16 dBm at MCS5, MCS13
14 dBm at MCS6-MCS7, MCS14-MCS15
5 GHz/HT-20:
11±2 dBm at MCS0-MCS3, MCS8-MCS11
10±2 dBm at MCS4-MCS5, MCS12-MCS-13
9±2 dBm at MCS6-MCS7, MCS14-MCS15
5 GHz/HT-40:
11±2 dBm at MCS0-MCS3, MCS8-MCS11
10±2 dBm at MCS4-MCS5, MCS12-MCS-13
9±2 dBm at MCS6-MCS7, MCS14-MCS15
Receiver Sensitivity
• IEEE 802.11a:
-85 dBm at 6 Mbit/s
-84 dBm at 9 and 12 Mbit/s
-82 dBm at 18 Mbit/s
-78 dBm at 24 Mbit/s
-73 dBm at 36 Mbit/s
-70 dBm at 48 Mbit/s
-68 dBm at 54 Mbit/s
• IEEE 802.11b:
-89 dBm at 1 и 2 Mbit/s
-84 dBm at 5.5 and 11 Mbit/s
• IEEE 802.11g:
-85 dBm at 6 Mbit/s
-84 dBm at 9 and 12 Mbit/s
-82 dBm at 18 Mbit/s
-78 dBm at 24 Mbit/s
-73 dBm at 36 Mbit/s
-70 dBm at 48 Mbit/s
-68 dBm at 54 Mbit/s
• IEEE 802.11n:
2.4 GHz/HT-20:
-82 dBm at MCS0/8
-79 dBm at MCS1/9
-77 dBm at MCS2/10
-74 dBm at MCS3/11
-70 dBm at MCS4/12
-66 dBm at MCS5/13
-65 dBm at MCS6/14
-64 dBm at MCS7/15
2.4 GHz/HT-40:
-79 dBm at MCS0/8
-76 dBm at MCS1/9
-74 dBm at MCS2/10
-71 dBm at MCS3/11
-67 dBm at MCS4/12
-63 dBm at MCS5/13
-62 dBm at MCS6/14
-61 dBm at MCS7/15
5 GHz/HT-20:
-82±2 dBm at MCS0/8
-79±2 dBm at MCS1/9
-77±2 dBm at MCS2/10
-74±2 dBm at MCS3/11
-70±2 dBm at MCS4/12
-66±2 dBm at MCS5/13
-65±2 dBm at MCS6/14
-64±2 dBm at MCS7/15
5 GHz/HT-40:
-79±2 dBm at MCS0/8
-76±2 dBm at MCS1/9
-74±2 dBm at MCS2/10
-71±2 dBm at MCS3/11
-67±2 dBm at MCS4/12
-64±2 dBm at MCS5/13
-63±2 dBm at MCS6/14
-62±2 dBm at MCS7/15
Web-based User Interface
• HTTP / HTTPS
Command Line
• SSH
SSID Security
• Up to 8 SSIDs, 4 per radio
• 802.1Q VLAN
• Station Isolation
Wireless Security
• WPA2 Personal/ Enterprise
• AES and TKIP
Authentication
• MAC Address Filtering
Physical Parameters
Dimensions
• 280 x 115 x 50 mm
Weight
• 495 grams
Power Adapter (PoE injector)
• Input: 100 to 240 V AC
• Output: 24 V DC, 1 A
Power over Ethernet
• 10 / 100 Mbps PoE (from either LAN1 or LAN2, non-standard PoE 24 V / 1 A)
Enclosure
• Plastic housing
Temperature
• Operating: -30 to 50°C
• Storage: -30 to 65°C
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• IP-55 rated
• ESD protection: 4 KV
• Surge protection: 6 KV
• CE
• EN 301 893 V1.7.1 (2012-06) (DFS/TPC)
• EN 300 328 V1.8.1 (2012-06)
• FCC
• IC
• cUL
• LVD
• C-Tick
• NCC
• Wi-Fi
• TELEC
* Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
Certificates
Order info
DWL-6700AP Dual-Band 802.11n Unified Wireless Access Point
Pictures

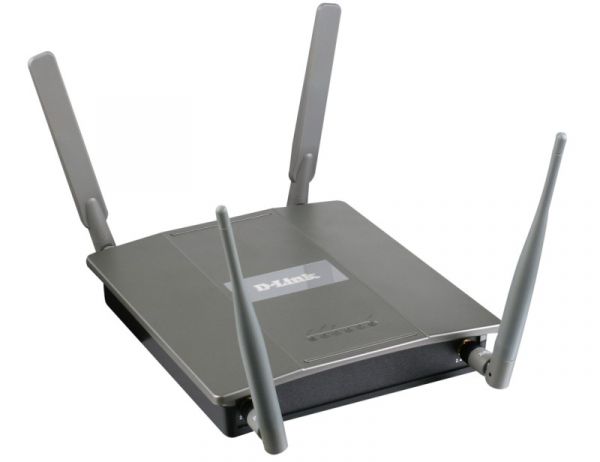

DWL-8600AP/Ax
