ANT24-0800

Outdoor Omni-Directional Antenna, 8 dBi

Tanımlama


The ANT24-0800 outdoor omni-directional antenna with 8 dBi gain operates in 2.4 GHz frequency band and has N Plug connector.

The ANT24-0800 antenna connects to a wireless device equipped with detachable external antennas, for example access point or router. The 8 dBi ANT24-0800 antenna allows you to extend the 2.4 GHz wireless network coverage and improve the quality of signal reception/transmission. This antenna is suitable both for outdoor and indoor use. Wide range of operating temperatures (-40 to 80 °C) allows you to use the antenna in harsh environmental conditions. N type connector provides compatibility with the most of outdoor access points, while the optional N Jack & RP-SMA Plug cable allows you to connect the ANT24-0800 to indoor wireless devices.

The ANT24-0800 is ideal for using a wireless device in the Point-to-Multipoint WDS/WDS+AP mode. Alternatively, Wireless Internet Service Provider (WISP) subscribers can also use this antenna to establish a strong connection between their host and their ISP’s outdoor access point.


Genel Özellikler


Connector
• N Plug

Frequency range
• 2.4 GHz ~ 2.5 GHz

Gain
• 8 dBi

VSWR
• 2.0 : 1 Max.

Polarization
• Linear, vertical

HPBW / horizontal
• 360°

HPBW / vertical
• 15°

Impedance
• 50 Ohms

Power handling
• 50 W

Lightning protection
• DC Ground

Physical parameters
Dimensions
• Diameter: 20 mm
• Length: 600 mm

Weight
• 340 g

Survival wind speed
• 180 km/hr

Operating temperature
• -40 to +80 °C

Humidity
• 100% @ 25 °C

Çözümler

Sipariş Bilgisi

ANT24-0800  Outdoor Omni-Directional Antenna, 8 dBi

Görseller

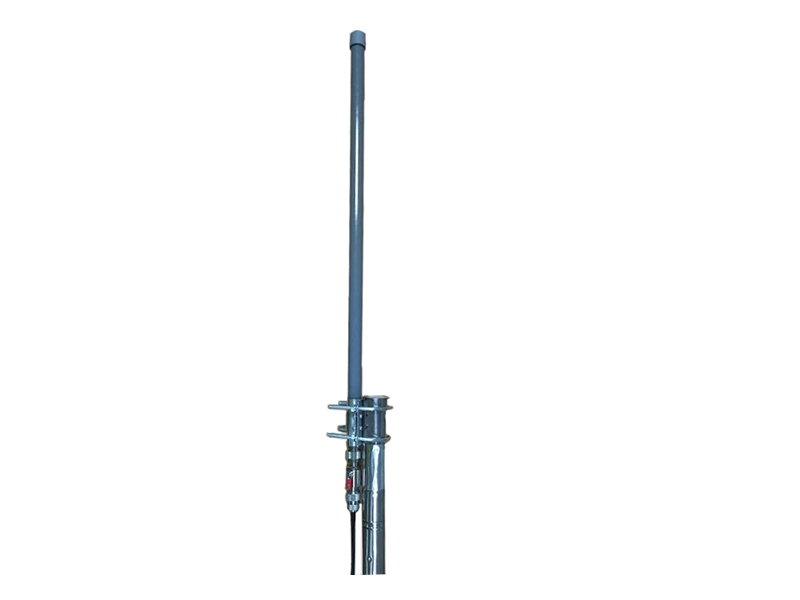

ANT24-0800/Cx
Front view
